Description
The Ultimate Forklift Main Lift Cylinder Replacement for Global Brands — Engineered for 1500mm Precision Stroke and 18.1MPa High-Pressure Durability.
1. Product Overview
The EPYY11112000 Forklift Lifting Cylinder represents the pinnacle of modern hydraulic engineering, specifically designed to serve as a high-performance Forklift Main Lift Cylinder Replacement. This unit is much more than a standard spare part; it is a critical upgrade for your material handling fleet. Capable of perfectly replacing major OEM brands like Toyota, Linde, Hyster, Jungheinrich, and Komatsu, it provides smooth, reliable, and powerful vertical lifting for a wide range of logistics equipment.
The EPYY11112000 excels in high-intensity warehouse operations with a 1500mm precision stroke.
Applicable Industry Sectors:
Core Excellence Summary:
Our 1500mm Stroke Forklift Lifting Cylinder stands out through its unique balance of 18.1MPa operational power and high-cycle longevity. Whether integrated into an Electric Forklift Lifting Cylinder system or an internal combustion truck mast, it delivers vibration-free extension and consistent pressure retention for safer work environments and better load control.
2. Technical Parameters
Precision is the foundation of hydraulic reliability. The EPYY11112000 is built to exact tolerances to ensure a Plug and Play experience for maintenance engineers across all forklift classes and brand architectures.
| Technical Parameter | Specification Details (Model: EPYY11112000) |
|---|---|
| Cylinder Bore (Diameter) | 56 mm (Honed to Ra 0.2-0.4 microns) |
| Piston Rod Diameter (Diameter) | 45 mm (Induction Hardened and Chrome Plated) |
| Stroke Length (Trip) | 1500 mm |
| Installation Distance (Closed Center) | 1658 mm |
| Working Pressure | 18.1 MPa (Optimized for High-Speed Lifting) |
| Max. Withstand Pressure | 27.15 MPa (Safety Factor 1.5 times) |
| Total Unit Weight | 33 kg (Balanced for High Mast Stability) |

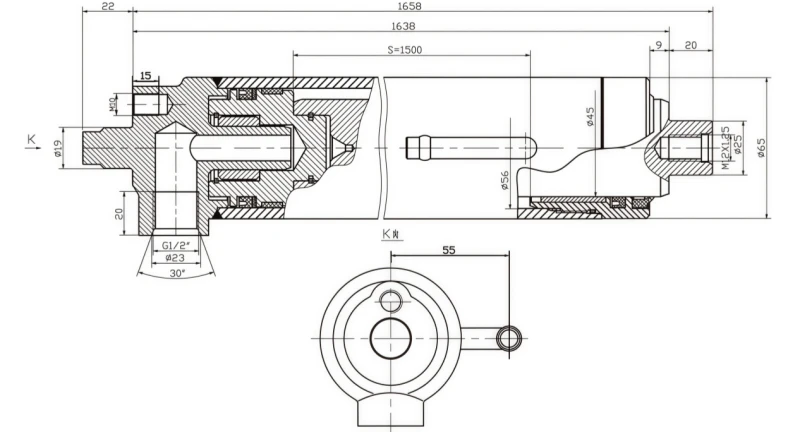

CAD blueprint detailing port placement, mounting threads, and internal seals for EPYY11112000.
3. Working Principle and Structural Composition
The EPYY11112000 Hydraulic Lift Cylinder operates on the principle of single-acting fluid displacement. When the forklift operator engages the lift control, the hydraulic pump sends pressurized fluid through the G1/2 inch intake port located at the base of the cylinder. This pressure acts directly against the Φ56mm piston area, forcing the Φ45mm rod to extend smoothly across its 1500mm stroke.
The structural composition is built around a heavy-wall seamless tube that serves as the pressure vessel. Internally, the cylinder features a multi-stage sealing system. The primary U-cup seal retains high-pressure fluid, while the buffer seal absorbs pressure spikes. To ensure long-term functionality in dusty warehouse environments, a high-durability wiper seal is integrated into the guide sleeve to prevent contaminants from reaching the internal honed surface. This meticulous design ensures that each Forklift Hydraulic Part works in harmony to prevent creeping or loss of pressure, even during prolonged holding periods.
4. Core Advantages
Unmatched Industrial Safety
Rated at 18.1MPa but tested to 27.15MPa. This significant safety overhead protects the operator and cargo from mast failure during emergency stops or high-load surges that occur in rapid logistics cycles.
Diamond-Grade Rod Surface
The Φ45mm piston rod undergoes induction hardening and hard chrome plating (minimum 30 microns). It provides extreme resistance to scratches and corrosion in chemical or high-humidity environments.
Zero-Leak Sealing Tech
Utilizing world-class NOK or Hallite seal kits. These premium components ensure the mast won’t creep or drop slowly during pallet placement, maintaining high vertical accuracy for automated systems.
Energy Efficient Flow
The internal port design is optimized for Electric Forklift Lifting Cylinder units, reducing pump strain and extending battery life per charge through minimized hydraulic resistance.
Ultra-Smooth Honing
The internal barrel wall is honed to Ra 0.2 microns. This microscopic smoothness minimizes seal friction, virtually eliminating chatter or mast vibration during extension at any load weight.
5. Structure and Material Craftsmanship
Reliability is born from the quality of raw materials and the precision of the manufacturing process. Our factory uses a 100 percent traceability system for every EPYY11112000 produced, from raw steel to final pressure testing.

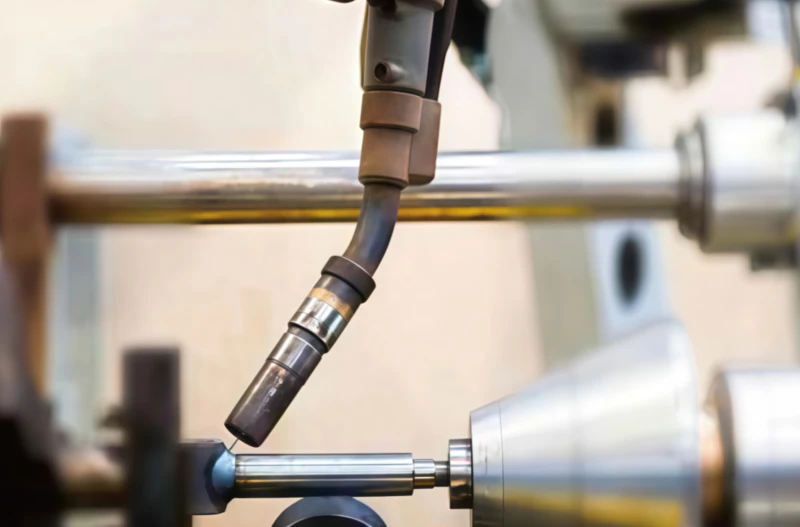

Robotic CNC honing and induction hardening processes on the Φ45mm rod line ensure consistency across every batch.
Steel Grade Selection:
We utilize ST52.3 / E355 cold-drawn seamless tubes for the barrel. This grade offers a yield strength that perfectly handles the internal pressure surges without barrel deformation during high-lift tasks under maximum capacity.
Advanced Welding:
All ports and end-caps are welded using robotic CO2 shielded systems. This ensures a clean, deep-penetration weld that is structurally superior to manual welding, preventing any chance of port leakage under vibration.
Surface Protection:
Each cylinder is finished with a marine-grade epoxy primer and a polyurethane topcoat, providing high resistance to salt, oil, and UV rays in heavy outdoor storage yards or industrial shipping ports.
6. Typical Application Scenarios
The EPYY11112000 is engineered for high-cycle industrial environments where mast reliability is non-negotiable. Its 1500mm stroke is a global standard for many modern reach trucks and stacker masts.

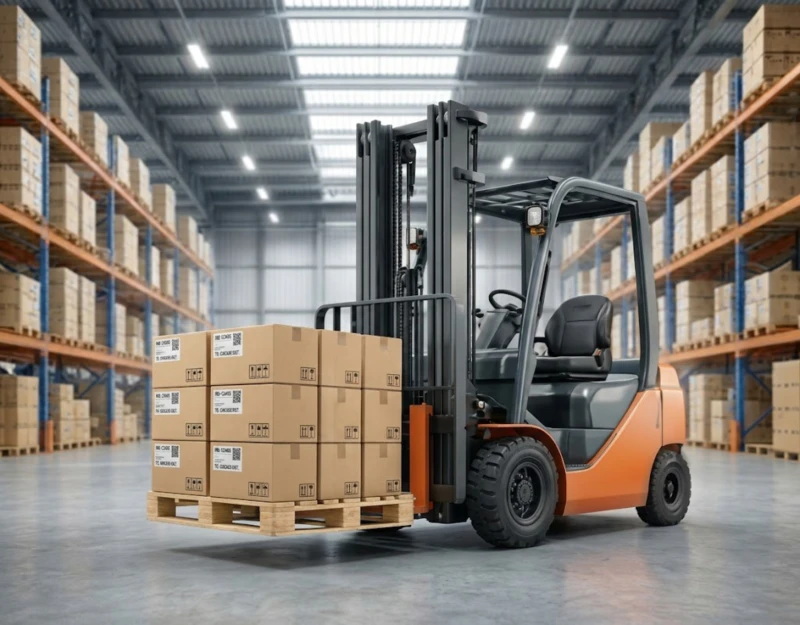

Ideal for high-bay reach truck operations where vertical stability is paramount for operator safety.
3-Stage High-Reach Masts
The 1500mm stroke is specifically balanced for triplex masts, providing the secondary stage lift required to reach heights up to 4.5 meters in narrow-aisle racking systems common in e-commerce fulfillment centers.
Cold Storage Logistics
When equipped with our specialized low-temperature seals, the EPYY11112000 maintains its pressure integrity in freezer warehouses, preventing fluid bypass failures and mast drift caused by seal hardening.
Food and Pharma Manufacturing
The non-creeping stability provided by the high-precision honed bore ensures that operator platforms and pallets stay exactly where they are set during meticulous loading tasks in sterile environments.
7. Why Choose Our Replacement Solution?
We offer the same industrial-grade performance as premium OEM brands but with a focused value proposition for the aftermarket sector, ensuring reduced fleet maintenance costs.

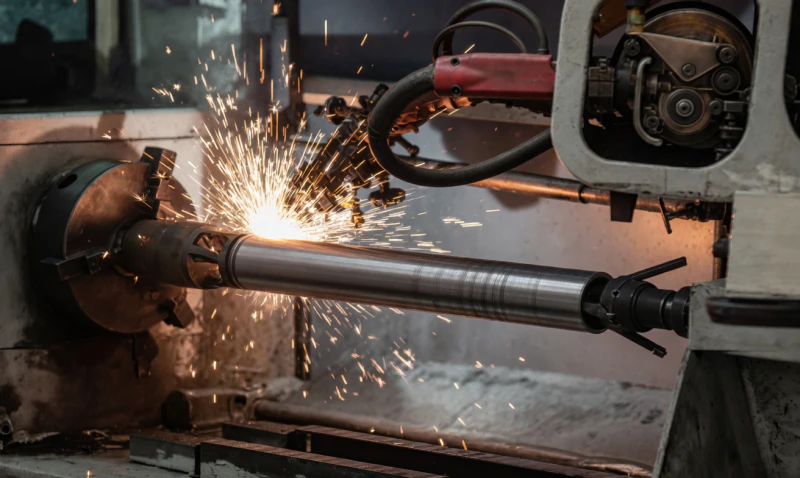

Our ISO 9001 2015 certified production facility ensures high-performance hydraulic output for every order across the globe.
| Feature Comparison | Original Brand Cylinders | EPYY11112000 Solution |
|---|---|---|
| Purchase Cost | High (Includes Brand Markup) | Outstanding Factory Pricing |
| Seal Quality | Standard OEM Seals | Premium NOK or Hallite Seals |
| Material Origin | Certified Global Supply | High-Tensile ST52.3 Steel |
| Installation Time | Direct Fit | 100 percent Drop-in Mechanical Match |
8. Frequently Asked Questions (FAQ)
Q1: Is the EPYY11112000 compatible with my 2.5-ton electric forklift?
A: Yes, if your forklift requires a Φ56 bore and 1500mm stroke, it is a perfect Electric Forklift Lifting Cylinder replacement. Please verify your current installation distance to be sure before ordering.
Q2: What is the benefit of the induction-hardened rod?
A: Induction hardening creates a high-hardness outer shell while maintaining a tough inner core. This prevents the rod from bending under extreme load while resisting scratches that cause catastrophic oil leaks.
Q3: How do I know when it is time for a Forklift Main Lift Cylinder Replacement?
A: Look for signs such as oil weeping from the top gland, the mast drifting down while parked under load, or visible scores and rust on the chrome rod. These issues compromise fleet safety and efficiency.
Q4: Can this cylinder handle the vibrations of a rough-terrain forklift?
A: Absolutely. The heavy-duty Forklift Hydraulic Parts and ST52.3 barrel are designed to absorb structural vibrations without compromising internal seal integrity during rough-terrain operations.
Q5: Do you provide bulk discounts for 3PL fleet managers?
A: Yes! We offer tiered pricing for logistics fleets and repair shops. Please contact our sales team for a wholesale quotation based on your annual maintenance needs.
Q6: What type of hydraulic oil should I use with this model?
A: Any high-quality ISO 32 or ISO 46 anti-wear hydraulic oil is suitable. For freezer environments, we recommend a specialized low-viscosity oil to ensure smooth extension at all times.
Q7: Does the 1658mm installation distance include the mounting pins?
A: The 1658mm measurement is the center to center distance of the mounting points when the cylinder is in its fully retracted position. Mounting pins are usually measured separately.
Q8: How is the cylinder protected during long overseas shipping?
A: Each cylinder is coated in rust-preventative oil, wrapped in thick protective film, and shipped in a reinforced export wooden crate to ensure it arrives ready for immediate work upon delivery.
Q9: Can I buy seal kits for the EPYY11112000 in the future?
A: Yes, we provide full support for all our products. We offer complete seal kits matching this Φ56xΦ45 configuration to facilitate easy and cost-effective long-term maintenance for our clients.
Q10: Is every cylinder pressure-tested before leaving the factory?
A: Every single EPYY11112000 undergoes a 100 percent pressure hold test on our computerized benches to ensure there are zero bypass or external leaks at its peak ratings before it is packed.
Partner with the World’s Leading Forklift Cylinder Specialists
Whether you are maintaining a local fleet or managing global forklift distribution, our EPYY series provides the reliability you need and the value your budget demands. Let’s build a safer and more efficient logistics world together. Our team is ready to help you optimize your equipment performance today.
Fast Response within 12 Hours | Worldwide Air and Sea Shipping | Custom Engineering Available
