The Ultimate 156mm Stroke Tilt Cylinder for Professional Forklift Fleets — Engineered for Precise Mast Control, 18.1MPa Operational Power, and Unmatched Durability.
1. Product Overview
The EPYY11112001 Forklift Tilt Cylinder is a pinnacle of hydraulic engineering, specifically designed to handle the critical angular adjustments of forklift masts. This high-performance Hydraulic Tilt Cylinder serves as a robust and reliable Forklift Main Tilt Cylinder Replacement for industry-leading brands including Toyota, Linde, Hyster, Heli, and Hangcha. By offering a stable 156mm stroke and utilizing a Φ70mm bore, it ensures that operators maintain absolute control over cargo positioning, significantly enhancing both warehouse safety and operational throughput.
The EPYY11112001 excels in high-intensity material handling with a 156mm precision stroke.
Applicable Industry Sectors:
Core Excellence Summary:
Our 30mm Rod Hydraulic Tilt Cylinder is built to thrive in Class I, II, and III forklift applications. With an 18.1MPa working pressure and superior sealing technology, it provides the necessary torque for tilting heavy loads while resisting the wear and tear of multi-shift industrial environments.
2. Technical Parameters
Precision dimensional matching is the key to preventing hydraulic leaks and mechanical binding. Below are the verified technical specifications for the EPYY11112001 model.
| Technical Feature | Detailed Data (Model: EPYY11112001) |
|---|---|
| Cylinder Bore (Φ) | 70 mm (Honed to Ra 0.2 microns) |
| Piston Rod Diameter (Φ) | 30 mm (Induction Hardened & Chrome Plated) |
| Stroke Length (Trip) | 156 mm |
| Installation Distance (Pin-to-Pin) | 453 mm |
| Working Pressure | 18.1 MPa (181 Bar) |
| Max. Withstand Pressure | 27 MPa (Safety Factor 1.5x) |
| Cylinder Weight | 12 kg |

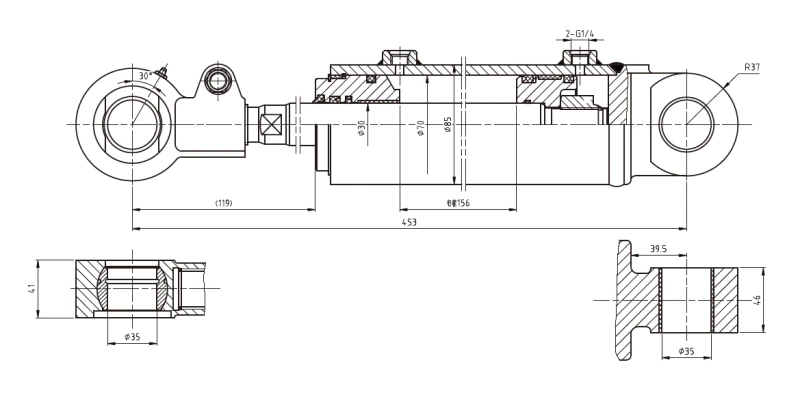

CAD blueprint detailing the 453mm center-to-center distance and dual oil ports for the EPYY11112001.
3. Working Principle and Structural Composition
The EPYY11112001 Hydraulic Tilt Cylinder operates as a double-acting actuator, providing bidirectional force to control the mast angle. It features two G1/4 inch hydraulic ports that facilitate the movement of fluid into either the base or rod end of the cylinder. When pressurized oil enters the base port, it acts against the 70mm piston, extending the 30mm rod to tilt the mast forward. To tilt the mast backward, oil is directed to the rod-side port, causing the piston to retract.
The structural composition includes a high-tensile seamless tube barrel, a precision-ground piston with wear rings, and a guide sleeve containing a multi-stage sealing system. Spherical bearings (eye-ends) are integrated into both ends to handle the complex tilting geometry of the forklift mast, ensuring that the rod remains free from lateral stress. This design, combined with our premium Forklift Hydraulic Parts, ensures zero internal bypass and long-term pressure retention.
4. Core Advantages
Exceptional Pressure Overhead
Designed for 18.1MPa but tested to withstand 27MPa. This allows the cylinder to safely manage hydraulic surges during heavy loading or rough transit.
Anti-Corrosive Rod Surface
The Φ30mm rod features induction hardening and a hard chrome plating (30-50 microns), offering maximum resistance to scratches and pitting in chemical or coastal environments.
MRO-Friendly Design
Standardized dimensions mean full compatibility with Forklift Tilt Cylinder Repair Seal Kits, allowing for fast, localized maintenance without replacing the entire unit.
Zero-Leak Seal Technology
Equipped with imported NOK or Hallite seal kits, these cylinders prevent “mast creep,” ensuring the mast angle stays locked exactly where the operator sets it.
Ultra-Smooth Honing
The internal barrel wall is honed to Ra 0.2 microns. This microscopic smoothness minimizes heat buildup and ensures linear tilting performance with zero “chatter.”
5. Structure and Material Craftsmanship
Reliability is born from the quality of raw materials and the precision of the manufacturing process. Our factory uses a 100 percent traceability system for every EPYY11112001 produced.
Our automated CNC honing and rod hardening stations ensure the durability of our 70mm bore tilt cylinders.
Steel Grade Selection:
We use ST52.3 / E355 seamless precision tubes for the barrel. This provides the ideal balance of yield strength and ductility for high-pressure operations.
Advanced Welding:
The end-caps and oil ports are welded using robotic CO2 shielded systems, ensuring zero structural voids and 100 percent leak-proof joints.
Surface Protection:
Finished with a dual-layer industrial primer and a polyurethane topcoat, providing high resistance to salt, oil, and intense UV exposure.
6. Typical Application Scenarios
The EPYY11112001 is a versatile 156mm Stroke Tilt Cylinder for Forklift systems, ideal for a variety of logistics and industrial scenarios.
A 3.0-ton counterbalance forklift utilizing the EPYY11112001 for stable load pickup and transport.
Standard Counterbalance Trucks
The 70mm bore is the industry standard for 2 to 3.5-ton trucks, providing the necessary torque to tilt the mast forward for pallet pickup and backward for secure load transport.
Outdoor Lumber Yards
In environments with uneven ground, the high-strength spherical bearings in the EPYY11112001 absorb chassis twisting, protecting the hydraulic rod from bending.
Custom Material Handlers
Also used as a reference design for Forklift Steering Cylinder applications in specialized tow tractors or AGVs where Φ70 bores are required.
7. Why Choose Our Solution?
We offer the same performance as premium OEM brands but with a focused value proposition for the global aftermarket.
Our ISO-certified testing center ensures that each EPYY11112001 meets 100 percent pressure compliance.
| Feature Comparison | Premium OEM Brand Cylinders | EPYY11112001 Replacement |
|---|---|---|
| Purchase Cost | High (Includes Brand Markup) | Factory Direct Pricing |
| Seal Quality | Standard Grade | NOK / Hallite High-Pressure Seals |
| Material Selection | Basic Alloy Steel | High-Tensile ST52.3 Steel |
| Installation Match | Proprietary | 100 percent Drop-in Match |
8. Frequently Asked Questions (FAQ)
Q1: Can I use the EPYY11112001 for a 2.5-ton Toyota forklift?
A: Yes, if your forklift uses a Φ70 bore and a Φ30 rod with a 453mm installation distance, this model is a direct fit replacement.
Q2: What is included in your Forklift Tilt Cylinder Repair Seal Kits?
A: Our repair kits include the primary U-cup piston seals, rod seals, heavy-duty wiper seals, O-rings, and backup rings required for a full rebuild.
Q3: Why is the 30mm rod diameter better than thinner rods?
A: The Φ30 rod provides higher buckling resistance, which is critical for safety when tilting a mast that is carrying a maximum-capacity load.
Q4: Is the EPYY11112000 pressure-tested?
A: Yes, every single EPYY11112001 undergoes a 100 percent pressure-hold test on our computerized benches to ensure there are zero external or internal bypass leaks.
Q5: How often should I check the cylinder for maintenance?
A: We recommend a visual inspection every 500 operating hours. Look for signs of “mast drift” or oil weeping from the rod gland.
Q6: Does the cylinder come with hydraulic fittings?
A: The cylinder features G1/4 standard ports. We can supply the corresponding hose adapters based on your specific requirements.
Q7: Can this cylinder handle cold storage environments?
A: Yes, our seals maintain their flexibility and pressure-retention capabilities across a temperature range of -20°C to +100°C.
Q8: How is the cylinder protected against rust during sea freight?
A: Each cylinder is coated in rust-preventative oil, bubble-wrapped, and shipped in a reinforced export-grade crate to ensure safe arrival.
Q9: Can you manufacture custom stroke lengths for the Φ70 bore?
A: Yes, as an OEM-focused manufacturer, we can adjust the stroke or installation distance for your specialized material handling equipment.
Q10: What is the warranty period for this lift cylinder?
A: We provide a 12-month comprehensive warranty against manufacturing defects and material failures.
Optimize Your Fleet’s Stability Today
Whether you are maintaining a local fleet or looking for a global manufacturing partner, our EPYY series hydraulic actuators provide the reliability you need. Don’t compromise on safety — secure your equipment with the world’s leading tilt cylinder experts.
