Engineering a Greener Future: EP Series Environmental Protection Hydraulics

The Metallurgy of Resilience: Defeating Acidic Leachate

The primary mechanical enemy in environmental hydraulics is chemical oxidation. Waste leachate often contains high concentrations of organic acids, chlorides, and ammonia, which can strip standard zinc coatings and induce hydrogen embrittlement in lower-grade steel. When a compactor cylinder rod is exposed to these liquids during its extension cycle, microscopic pitting begins.

To combat this, the EP series utilizes ST52.3 (E355) high-yield strength seamless steel as the core substrate. Every cylinder rod undergoes a proprietary Double-Chrome Plating process, where a secondary layer of micro-porous chrome is applied over an induction-hardened base (HRC 55). This creates an impermeable shield that prevents leachate from reaching the raw steel. For ultra-aggressive recycling applications, we offer optional Stainless Steel 17-4PH rods, ensuring that the actuator remains structurally sound even in direct contact with caustic chemical runoff.

The Science of Containment: Zero-Leak Sealing Matrix

In environmental applications, hydraulic fluid leakage is more than a maintenance cost—it is a contamination risk. We exclusively utilize Japanese NOK multi-lip polyurethane seals specifically formulated for high-humidity resistance. Unlike standard rubber seals which swell or degrade when exposed to the synthetic hydraulic oils often used in eco-friendly equipment, our NOK matrix maintains its tensile elasticity from -30°C to +110°C.

This sealing performance is maximized through our Mirror-Bore Finishing. Internal cylinder tubes undergo CNC skiving and roller burnishing to achieve an Ra 0.2µm finish. This ultra-smooth surface eliminates the microscopic “valleys” that can trap abrasive grit from waste dust, ensuring that the seal-to-bore interface remains vacuum-tight for millions of cycles. This engineering focus is why the EP series can maintain full compaction force for hours of stationary hold without internal fluid bypass.

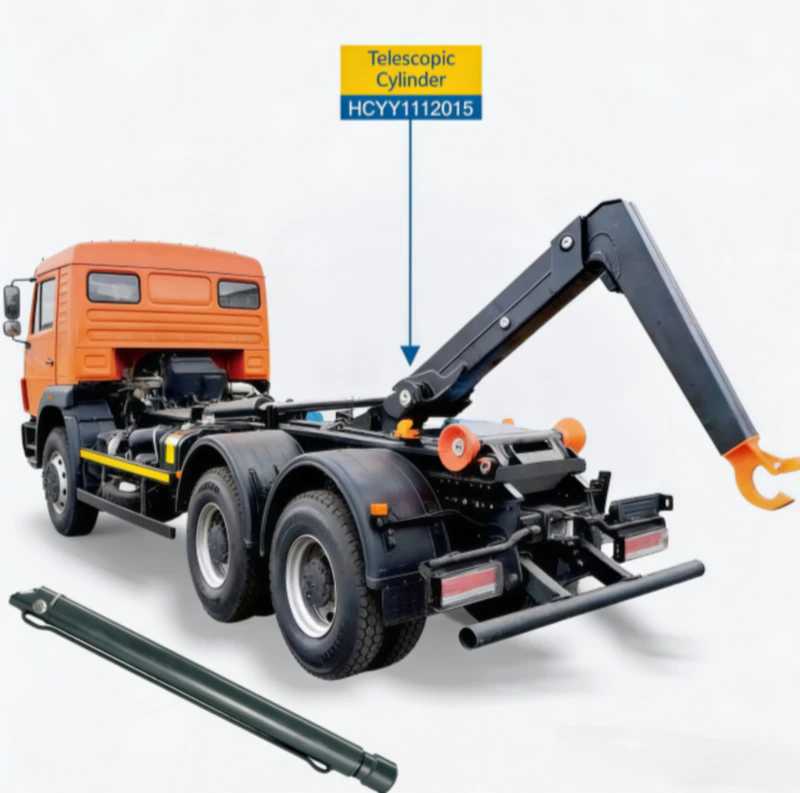

Mobile Refuse Collection: Telescopic Jibs and Grabber Rams

In modern urban waste collection, speed and precision are vital. Side-loading refuse vehicles utilize complex telescopic cylinders to extend jib arms that grab containers of varying weights. These cylinders must operate within highly restrictive chassis spaces while managing dynamic, off-center loads as the container is hoisted and dumped into the hopper.

The EPYY Dynamic Solution: Our telescopic EP series features internal rod cushioning to prevent “end-of-stroke” hammering. This damping technology reduces the mechanical shock transmitted to the vehicle’s chassis, extending the overall life of the refuse truck. By utilizing induction-hardened Φ25mm to Φ150mm rods, we ensure the grabber jib remains rigid even at full horizontal extension, providing operators with the tactile response needed for rapid, safe collection in narrow city streets.

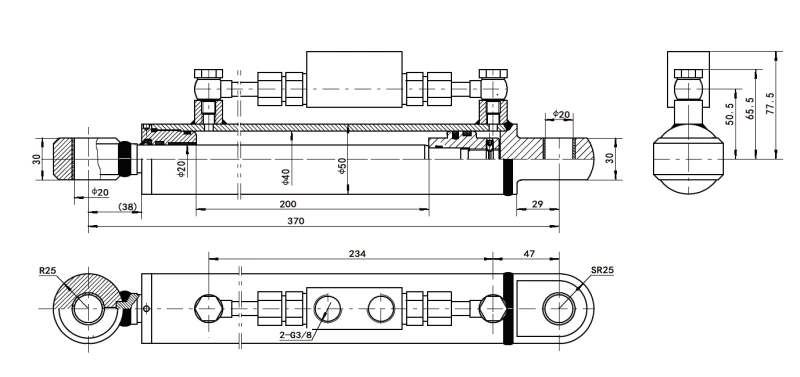

Safety and Security: Fail-Safe Locking Actuators

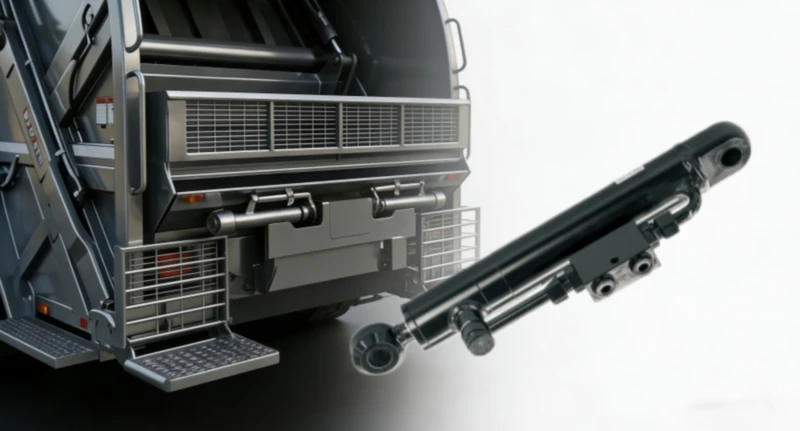

Stationary waste compactors and large-scale recycling bailers require a massive mechanical lock to keep waste compressed during the tying or transport phase. If the locking cylinder fails or drifts, the decompressed waste can burst doors or damage sorting conveyor systems, leading to hazardous cleanup operations and extensive equipment downtime.

The EPYY Safety Lock Matrix: The EP series locking cylinders are equipped with integrated pilot-operated check valves and manifold-mounted safety locks. These components ensure that the cylinder remains physically extended and pressurized even in the event of a total hydraulic power loss. This fail-safe engineering is why tiltcylinder.net is the preferred supplier for municipal environmental contractors managing high-pressure industrial bailers.

Manufacturing Standards: Forging Trust through Automation

In environmental infrastructure, there is no room for human error in manufacturing. A single porous weld in a compactor cylinder can lead to a fluid leak that contaminates a city’s drainage system. Our production facility is a benchmark for Industrial 4.0 Hydraulic Fabrication. Every critical joint fusion is performed by multi-pass robotic SAW (Submerged Arc Welding) units, which provide deeper penetration and 100% repeatability compared to manual welding. Each unit is subject to 100% Ultrasonic Non-Destructive Testing (NDT) and a mandatory 30-minute pressure hold test to verify absolute integrity.

Economic Intelligence: Reducing TCO through Engineering

For municipal fleet managers and waste cooperatives, the true measure of a cylinder’s value is its Total Cost of Ownership (TCO). While a budget cylinder may save 15% on initial purchase, the costs of cleanup, fines, and unplanned maintenance after a leachate-induced failure can exceed the original machine’s value. By investing in the EP “Fit-and-Forget” series, fleet managers typically see a 50% reduction in hydraulic-related downtime.

Professional Technical Maintenance Protocol:

• Hydraulic Fluid Hygiene: Waste dust is highly abrasive. Maintain oil to ISO 4406 16/14/11 standards to protect the Ra 0.2µm bore finish.
• Wiper Seal Integrity Check: Inspect rod wipers daily for chemical hardening. A failing wiper allows corrosive leachate to penetrate the main seal matrix.
• Pressure Lock Verification: Perform monthly static load holds on compactor doors to verify the integrity of the integrated safety locks.
• System De-Aeration: Cycle cylinders five times to full stroke under no-load after any hydraulic hose replacement to prevent “spongy” response.

Conclusion: The Hydraulic Heart of Sustainability

As we move further into 2026, the intersection of mechanical engineering and environmental stewardship has become the new industry standard. The hydraulic cylinder remains the critical link in the waste-to-energy chain. At tiltcylinder.net, we combine world-class ST52.3 metallurgy, Japanese sealing technology, and rigorous automated fabrication to provide the actuators that ensure the world’s cities remain clean, safe, and efficient. The EP Series is more than a product; it is the hydraulic foundation of a sustainable planet.
